How to Make an Animatic in Photoshop

James Chambers
James Chambers, Boords Founder
Updated

Animatics are a central part of the pre-production process. While specialist animatic software is available, you can do a good job of creating a simple animatic in Photoshop in a few steps.

  1. sparkle
    Create your document
  2. sparkle
    Add a timeline
  3. sparkle
    Add your frames
  4. sparkle
    Time your frames out
  5. sparkle
    Playing your animatic through
  6. sparkle
    Exporting your animatic
Free Storyboard Software
Boords App Screenshot
Boords

The Shortcut to Effective Storyboards.

Boords is an easy-to-use storyboarding tool to plan creative projects.

Get Started for Free
*No credit card required

Step 1. Create your document

Fire up Photoshop, then create a new document 1920px wide, 1080px high. These dimensions are also known as HDTV1080p, or Full HD. It's the size of most short-form video.

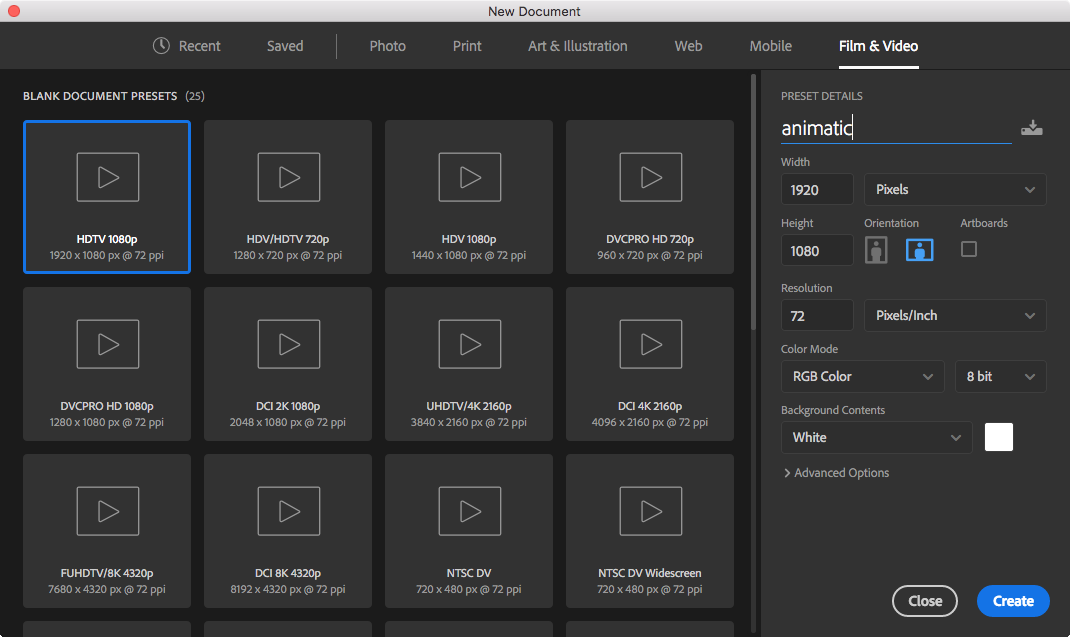

photoshop animatic document setup
Creating a 1920x1080 document in Photoshop

Step 2. Add a timeline

Click "Create Video Timeline" within the Timeline panel at the bottom of the UI. If you can't see the Timeline panel, you can open it by selecting 'Window > Timeline' from the menu.

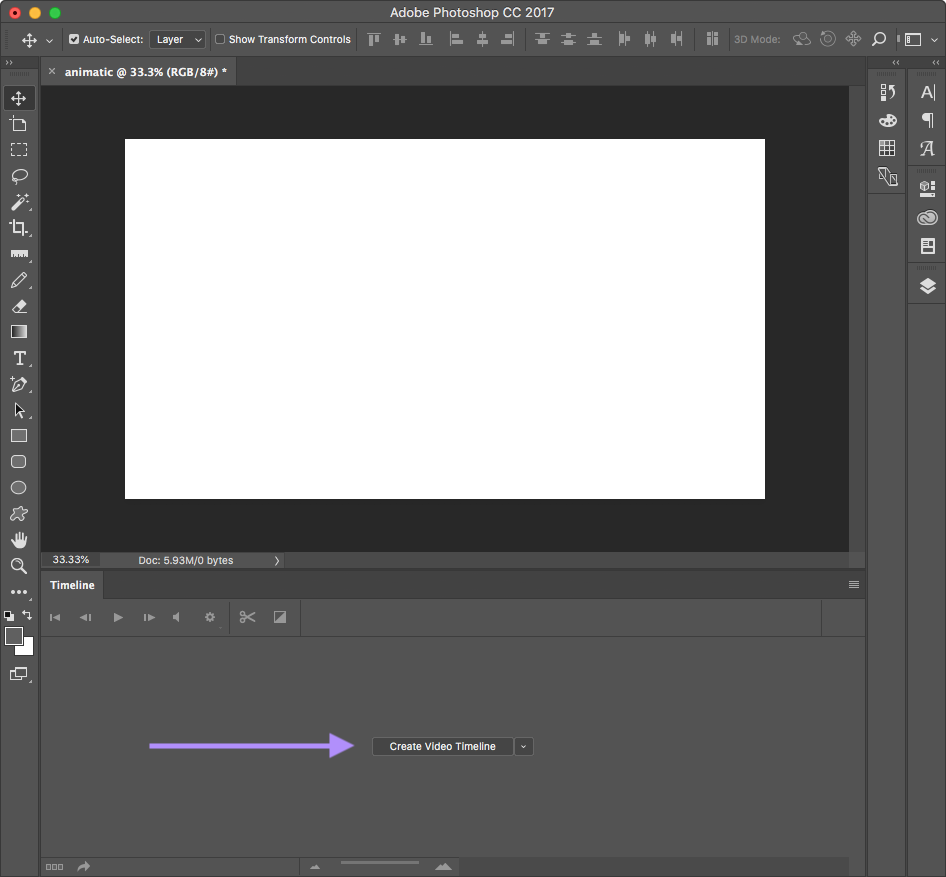

photoshop-video-timeline

Step 3. Add your frames

Drag your storyboard images into the empty artboard. This will create references to those frames on your Timeline. When you first drag your images in, there's a good chance the Timeline won't fill the whole horizontal width of your screen. Use the Timeline zoom tool at the bottom of the Timeline panel to zoom in or out.

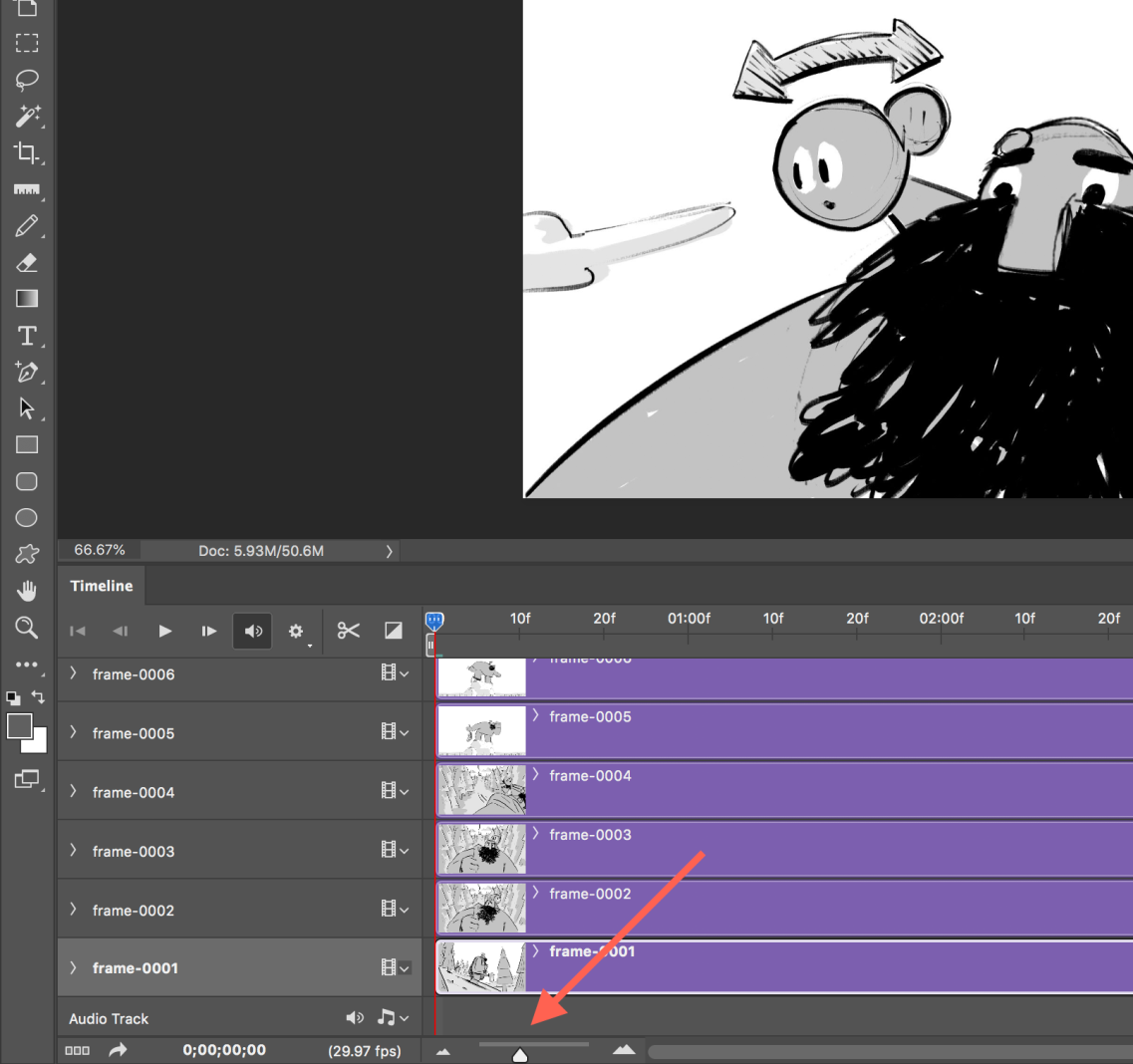

timeline zoom photoshop
The Timeline zoom tool

Step 4. Time your frames out

Now for the fun part - timing out your animatic! Drag the end point of each of your frames to the left until you have a 'staircase' of frames. Your first frame should be at the top, the last frame at the bottom.

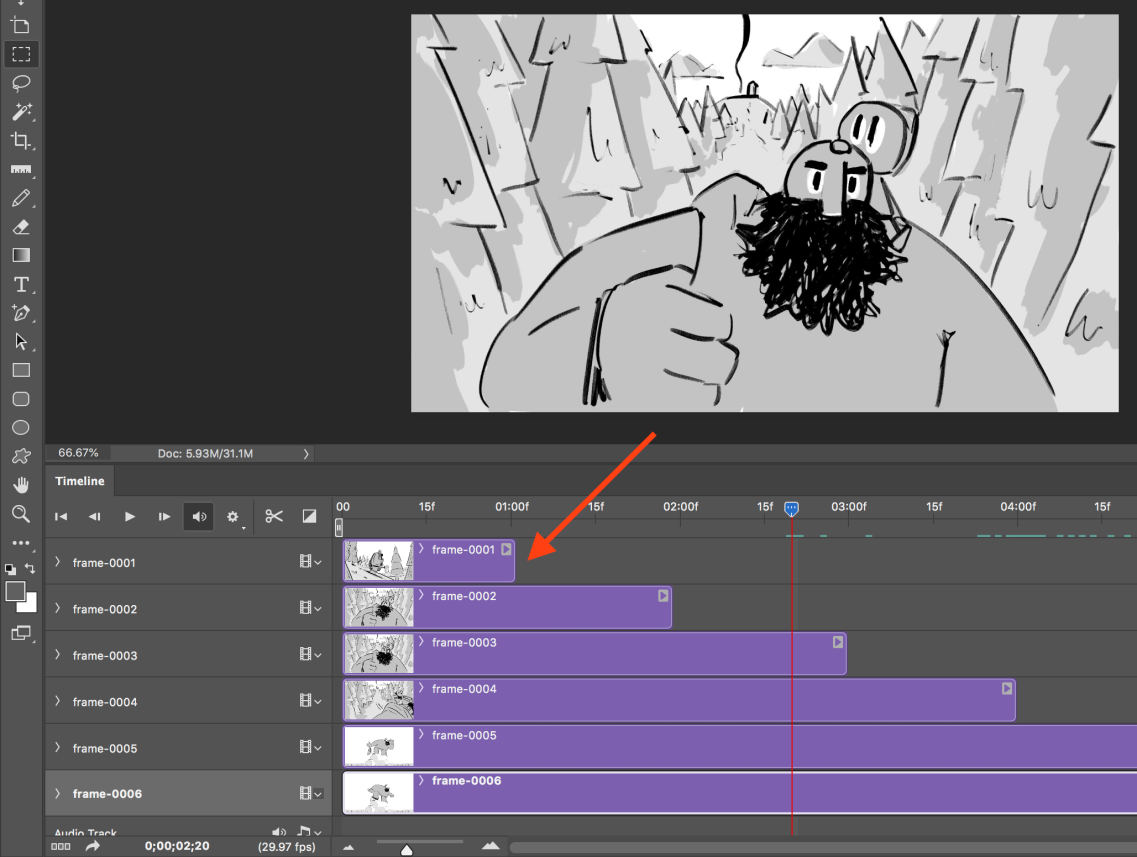

animatic-end-point
The end point of frame-0001

We don't need to alter the start points of each frame, because Photoshop will only show the top visible frame at any given point. The end point of the last visible frame in your Timeline defines the duration of your animatic.

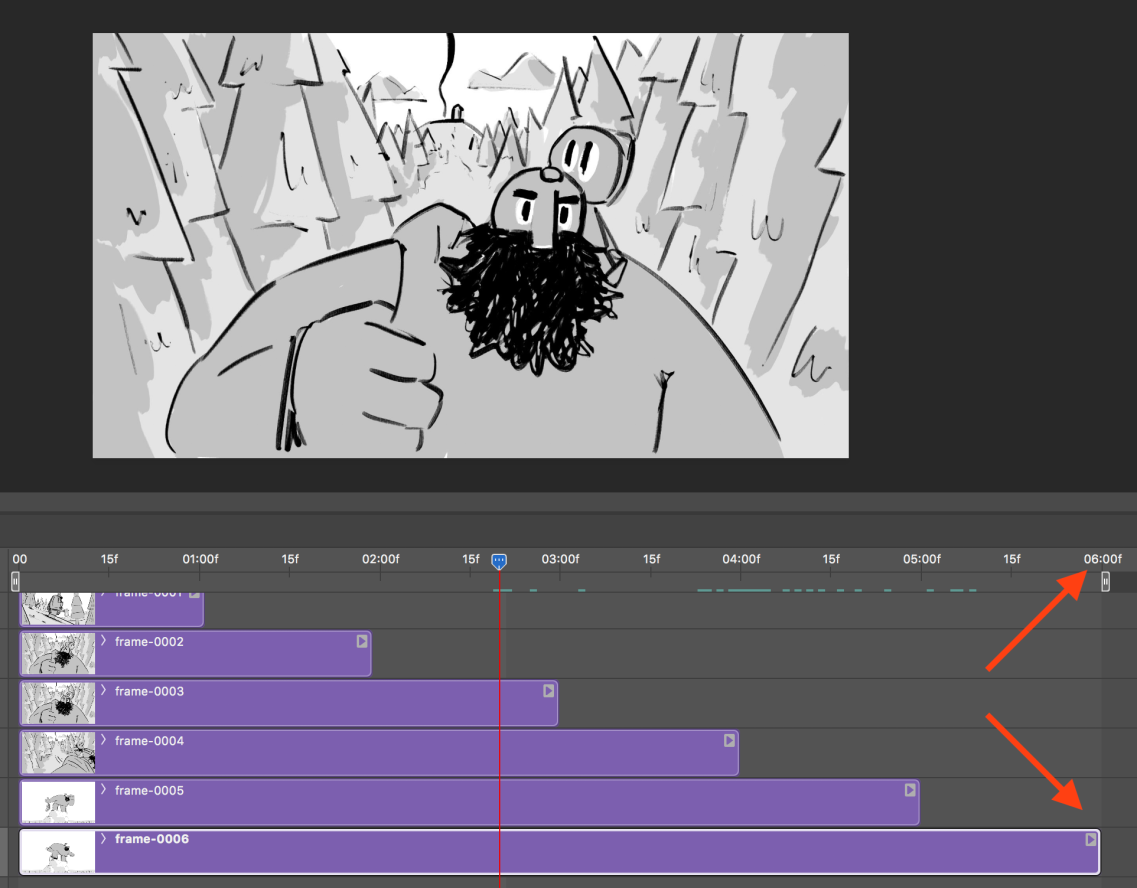

animatic duration
The last visible frame defines your animatic duration

Step 5. Playing your animatic through

Play your animatic through by using the 'Play' or 'Step' buttons in the Timeline UI. 'Play' will continuously play your animatic (it loops by default, although you can turn this off). 'Step' will move your animatic forward one frame at a time. You can also play and pause your animatic by pressing the space bar.

playing photoshop animatic
Play and Step controls

Get your FREE Filmmaking Storyboard Template Bundle

Plan your film with 10 professionally designed storyboard templates as ready-to-use PDFs.

download

Step 6. Exporting your animatic

When you're happy with the timing of your animatic, it's time to export it. Go to 'File > Export > Render video', choose your MP4 export settings, and you're off to the races.
